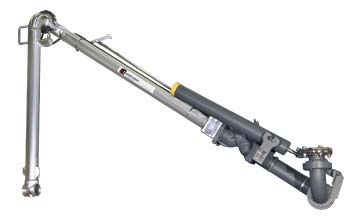

Fixed Reach Loader - E2804, E2805, E2812, E2813

Our Fixed Reach Loader is especially designed for the top loading of Road or Rail tankers using the manhole.

The loading arm has a fixed reach and is suitable for applications where the manhole can be accurately positioned.

ARM ENVELOPE 1

Because of the robust and high quality design of the swivel joints and the precise loading arm balancing, handling of the loading arm is effortless.

This loading arm is designed for petroleum and chemical applications.

Sizes:
DN 50, DN 80, DN 100, DN 150

Balancing method:Spring cylinder, Counterweight

Material of inlet flange up to valve:
Mineral oil - Carbon steel, Chemicals - Carbon steel, stainless steel

Material of valve:
S.G. iron

Material of "A"-tube to outlet:
Aluminum

Seals: Mineral oil - Buna, Viton, (no PTFE), Chemicals - Buna, Viton, PTFE

Design pressure (up to shut-off valve): Mineral oil - max. 19 bar, Chemicals - max. 40 bar
